本例实现迭代器模式，使用C++11手写二叉树的中序遍历迭代器。

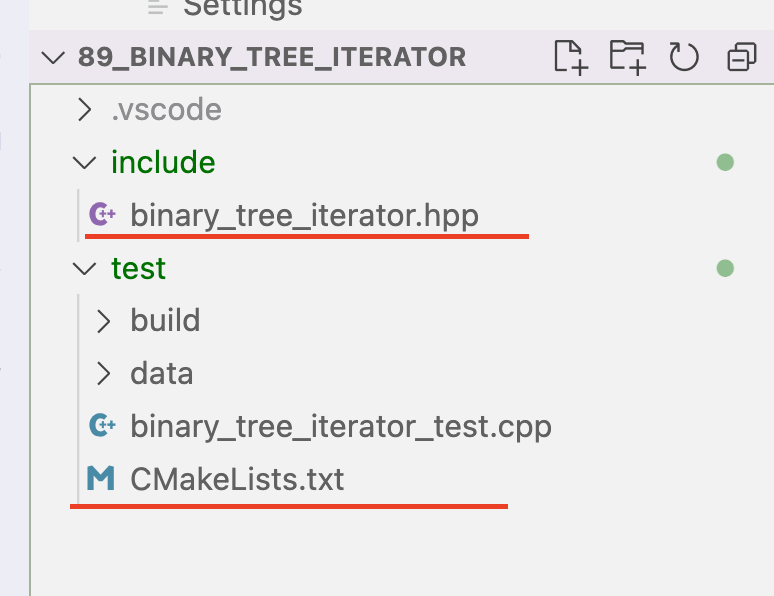

程序结构如下，

test/CMakeLists.txt

cmake_minimum_required(VERSION 2.6)

if(APPLE)
    message(STATUS "This is Apple, do nothing.")
    set(CMAKE_MACOSX_RPATH 1)
    set(CMAKE_PREFIX_PATH /Users/aabjfzhu/software/vcpkg/ports/cppwork/vcpkg_installed/x64-osx/share )
elseif(UNIX)
    message(STATUS "This is linux, set CMAKE_PREFIX_PATH.")
    set(CMAKE_PREFIX_PATH /vcpkg/ports/cppwork/vcpkg_installed/x64-linux/share)
endif(APPLE)

project(binary_tree_it)

set(CMAKE_CXX_STANDARD 20)
set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -Wno-narrowing")

add_definitions(-g)

find_package(ZLIB)

find_package(OpenCV REQUIRED )
find_package(Arrow CONFIG REQUIRED)

find_package(unofficial-brotli REQUIRED)
find_package(unofficial-utf8proc CONFIG REQUIRED)
find_package(Thrift CONFIG REQUIRED)

find_package(glog REQUIRED)

find_package(OpenSSL REQUIRED)

find_package(Boost REQUIRED COMPONENTS
    system
    filesystem
    serialization
    program_options
    thread
    )

find_package(DataFrame REQUIRED)

if(APPLE)
    MESSAGE(STATUS "This is APPLE, set INCLUDE_DIRS")
set(INCLUDE_DIRS ${Boost_INCLUDE_DIRS} /usr/local/include /usr/local/iODBC/include /opt/snowflake/snowflakeodbc/include/ ${CMAKE_CURRENT_SOURCE_DIR}/../include/ ${CMAKE_CURRENT_SOURCE_DIR}/../../../include)
elseif(UNIX)
    MESSAGE(STATUS "This is linux, set INCLUDE_DIRS")
    set(INCLUDE_DIRS ${Boost_INCLUDE_DIRS} /usr/local/include ${CMAKE_CURRENT_SOURCE_DIR}/../include/   ${CMAKE_CURRENT_SOURCE_DIR}/../../../include/)
endif(APPLE)


if(APPLE)
    MESSAGE(STATUS "This is APPLE, set LINK_DIRS")
    set(LINK_DIRS /usr/local/lib /usr/local/iODBC/lib /opt/snowflake/snowflakeodbc/lib/universal)
elseif(UNIX)
    MESSAGE(STATUS "This is linux, set LINK_DIRS")
    set(LINK_DIRS ${Boost_INCLUDE_DIRS} /usr/local/lib /vcpkg/ports/cppwork/vcpkg_installed/x64-linux/lib)
endif(APPLE)

if(APPLE)
    MESSAGE(STATUS "This is APPLE, set ODBC_LIBS")
    set(ODBC_LIBS iodbc iodbcinst)
elseif(UNIX)
    MESSAGE(STATUS "This is linux, set LINK_DIRS")
    set(ODBC_LIBS odbc odbcinst ltdl)
endif(APPLE)

include_directories(${INCLUDE_DIRS})
LINK_DIRECTORIES(${LINK_DIRS})

file( GLOB test_file_list ${CMAKE_CURRENT_SOURCE_DIR}/*.cpp)

file( GLOB APP_SOURCES ${CMAKE_CURRENT_SOURCE_DIR}/../impl/*.cpp ${CMAKE_CURRENT_SOURCE_DIR}/../include/*.h ${CMAKE_CURRENT_SOURCE_DIR}/../include/*.cpp ${CMAKE_CURRENT_SOURCE_DIR}/../../../include/arr_/impl/*.cpp ${CMAKE_CURRENT_SOURCE_DIR}/../../../include/http/impl/*.cpp ${CMAKE_CURRENT_SOURCE_DIR}/../../../include/yaml/impl/*.cpp ${CMAKE_CURRENT_SOURCE_DIR}/../../../include/df/impl/*.cpp ${CMAKE_CURRENT_SOURCE_DIR}/../../../include/death_handler/impl/*.cpp)

add_library(${PROJECT_NAME}_lib SHARED ${APP_SOURCES} ${test_file})
target_link_libraries(${PROJECT_NAME}_lib ${Boost_LIBRARIES} ZLIB::ZLIB glog::glog DataFrame::DataFrame ${OpenCV_LIBS})
target_link_libraries(${PROJECT_NAME}_lib OpenSSL::SSL OpenSSL::Crypto libgtest.a pystring libyaml-cpp.a libgmock.a ${ODBC_LIBS} libnanodbc.a pthread dl backtrace libzstd.a libbz2.a libsnappy.a re2::re2 parquet lz4 unofficial::brotli::brotlidec-static unofficial::brotli::brotlienc-static unofficial::brotli::brotlicommon-static utf8proc thrift::thrift  arrow arrow_dataset)

foreach( test_file ${test_file_list} )
    file(RELATIVE_PATH filename ${CMAKE_CURRENT_SOURCE_DIR} ${test_file})
    string(REPLACE ".cpp" "" file ${filename})
    add_executable(${file}  ${test_file})
    target_link_libraries(${file} ${PROJECT_NAME}_lib)
endforeach( test_file ${test_file_list})

test/binary_tree_iterator_test.cpp

#include "binary_tree_iterator.hpp"

#include <glog/logging.h>
#include <gtest/gtest.h>

#include <fstream>
#include <memory>

#include "death_handler/death_handler.h"

int main(int argc, char** argv) {
    FLAGS_log_dir = "./";
    FLAGS_alsologtostderr = true;
    // 日志级别 INFO, WARNING, ERROR, FATAL 的值分别为0、1、2、3
    FLAGS_minloglevel = 0;

    Debug::DeathHandler dh;

    google::InitGoogleLogging("./logs.log");
    testing::InitGoogleTest(&argc, argv);
    int ret = RUN_ALL_TESTS();
    return ret;
}

// 中根遍历迭代器
GTEST_TEST(BinaryTreeIteratorTests, BinaryTreeIt) {
    BinaryTree<std::string> family (
        new Node<std::string>("me",
        new Node<std::string>("mother",
            new Node<std::string>("Mother's mother"),
            new Node<std::string>("Mother's father")
        ),
        new Node<std::string>("father"))
    );

    for(auto it = family.begin(); it!=family.end(); ++it) {
        std::cout << (*it).value << "\n";
    }
}

include/binary_tree_iterator.hpp

#ifndef _FREDRIC_BINARY_TREE_ITERATOR_HPP_
#define _FREDRIC_BINARY_TREE_ITERATOR_HPP_

#include <boost/config/warning_disable.hpp>
#include <boost/foreach.hpp>
#include <boost/fusion/include/adapt_struct.hpp>
#include <boost/spirit/include/phoenix_core.hpp>
#include <boost/spirit/include/phoenix_fusion.hpp>
#include <boost/spirit/include/phoenix_object.hpp>
#include <boost/spirit/include/phoenix_operator.hpp>
#include <boost/spirit/include/phoenix_stl.hpp>
#include <boost/spirit/include/qi.hpp>
#include <boost/variant/recursive_variant.hpp>
#include <iostream>
#include <memory>
#include <sstream>
#include <string>
#include <vector>

template <typename T>
struct BinaryTree;

template <typename T>
struct Node {
    T value{};

    Node<T>* left{nullptr}, *right{nullptr}, *parent{nullptr};

    BinaryTree<T>* tree{nullptr};

    Node(T value_) : value{value_} {}
    Node(T value_, Node<T>* left_, Node<T>* right_)
        : value(value_), left(left_), right{right_} {
        // 初始化左子节点和右子节点的树为同一颗树
        this->left->tree = this->right->tree = tree;
        // 初始化左子节点和右子节点的父节点为当前节点
        this->left->parent = this->right->parent = this;
    }

    void set_tree(BinaryTree<T>* t) {
        tree = t;
        if (left) left->set_tree(t);
        if (right) right->set_tree(t);
    }

    ~Node() {
        if(left) delete left;
        if(right) delete right;
    }
};

template <typename T>
struct BinaryTree {
    Node<T>* root{nullptr};
    BinaryTree(Node<T>* root_) : root(root_) {
        root->set_tree(this);
    }

    ~BinaryTree() {
        if(root) {
            delete root;
        }
    }

    // 中序遍历迭代器
    template <typename U>
    struct MidOrderIterator {
        Node<U>* current;

        MidOrderIterator(Node<U>* current_)
            : current{current_} {}

        bool operator!=(MidOrderIterator<U> const& other) {
            return current != other.current;
        }

        // ++ 操作符重载
        MidOrderIterator<U>& operator++() {
            // 如果有右子树，就先转到右子树，然后一直寻找他的左子树
            if (current->right) {
                current = current->right;
                while (current->left) {
                    current = current->left;
                }
            } else {
                // 如果往上走，发现当前节点是右子树，
                // 则一直往上走，直到发现当前节点是p的左子树或根节点为止
                // 最终把p赋值给current，说明当前节点被赋值为根节点
                auto p = current->parent;
                while (p && current == p->right) {
                    current = p;
                    p = p->parent;
                }
                current = p;
            }
            return *this;
        }

        Node<U>& operator*() { return *current; }
    };

    using iterator = MidOrderIterator<T>;

    iterator begin() {
        Node<T>* n = root;
        if(n) {
            while(n->left) {
                n = n->left;
            }
        }
        return iterator{n};
    }

    iterator end() {
        return iterator{nullptr};
    }
};
#endif

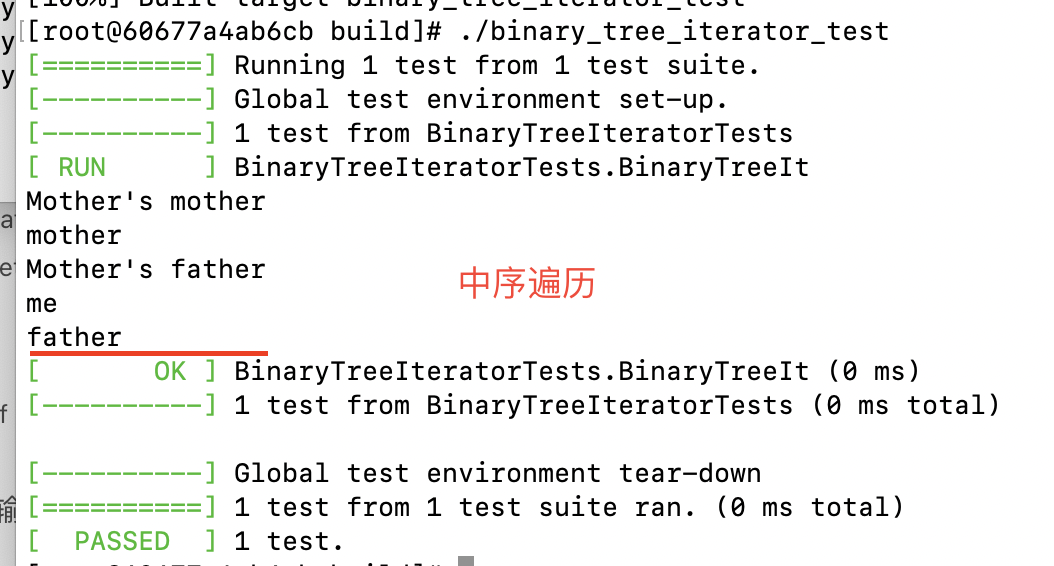

程序输出如下，
