数据总线模式：（实际上，就是 Event-Bus 消息总线模式）允许在一个应用程序的组件之间收发消息/事件，而不需要这些组件相互感知，它们只需要知道所发送/接收的消息/事件的类型即可。
程序示例：
1.创建数据总线类、成员和数据类型接口

//成员
public interface Member extends Consumer<DataType>{

 void accept(DataType dataType);
}
//数据类型
public interface DataType{
DataBus getDataBus();
void setDataBus(DataBus dataBus);
}
@Getter
@Setter
public abstract class AbstractDataType implements DataType{
   private DataBus dataBus;
}
//总线
public class DataBus{
    private static final DataBus INSTANCE = new DataBus();
    private final Set<Member> listeners = new HashSet<>();

    public static DataBus getInstance() {
        return INSTANCE;
    }

    public void subscribe(final Member member) {
        listeners.add(member);
    }

    public void unsubscribe(final Member member) {
        listeners.remove(member);
    }

    public void publish(final DataType data) {
        data.setDataBus(this);
        listeners.forEach(x->x.accept(data));
    }
}

2.创建具体的数据类型子类

@AllArgsConstructor
@Getter
public class MessageDataType extends AbstractDataType{
    private final String message;

    @Override
    public String toString() {
        return String.format("消息:{%s}",message);
    }

    public static DataType of(final String message) {
        return new MessageDataType(message);
    }
}

@RequiredArgsConstructor
@Getter
public class StartDataType extends AbstractDataType{
    private final LocalDateTime when;
public static DataType of(final  LocalDateTime time){
    return new StartDataType(time);
}
}

@RequiredArgsConstructor
@Getter
public class StoppingData extends AbstractDataType{

  private final LocalDateTime when;

  public static DataType of(final LocalDateTime when) {
    return new StoppingData(when);
  }
}

3.创建具体成员

@Slf4j
public class MessageCollectorMember implements Member{
    private final String name;
    private final List<String> messges = new ArrayList<>();

    public MessageCollectorMember(String name) {
        this.name = name;
    }

    @Override
    public void accept(final DataType dataType) {
        if (dataType instanceof MessageDataType) {
            handleEvent((MessageDataType) dataType);
        }
    }

	//具体处理逻辑
    private void handleEvent(MessageDataType data) {
        log.info("{} sess message {}", name, data);
        messges.add(data.getMessage());
    }


    public List<String> getMessges() {
        return this.messges;
    }
}


@Getter
@Slf4j
@RequiredArgsConstructor
public class StatusMember implements Member{

    private final int id;
    private LocalDateTime started;
    private LocalDateTime stopped;


    @Override
    public void accept(final DataType dataType) {
        if (dataType instanceof StartDataType) {
            handleEvent((StartDataType) dataType);
        }else if (dataType instanceof StoppingData){
            handleEvent((StoppingData) dataType);
        }


    }


    private void handleEvent(StartDataType data) {
        started = data.getWhen();
        log.info("接收方{}看到应用程序在{}启动",id,started);
    }

    private void handleEvent(StoppingData data){
        stopped=data.getWhen();
        log.info("接收方{}看到应用程序在{}停止",id,stopped);
        log.info("接收方{}正在发送停止消息",id,stopped);
       data.getDataBus().publish(MessageDataType.of(String.format("Goodbye cruel world from #%d!", id)));
    }

}

测试输出：

  DataBus bus = DataBus.getInstance();
        bus.subscribe(new StatusMember(1));
        bus.subscribe(new StatusMember(2));

        MessageCollectorMember foo = new MessageCollectorMember("foo");
        MessageCollectorMember boo = new MessageCollectorMember("boo");
        bus.subscribe(foo);


        bus.publish(StartDataType.of(LocalDateTime.now()));
        bus.publish(MessageDataType.of("Only foo should see this"));

        bus.subscribe(boo);
        bus.publish(MessageDataType.of("Foo and boo should see this"));

        bus.unsubscribe(foo);
        bus.publish(MessageDataType.of("Only boo should see this"));
        bus.publish(StoppingData.of(LocalDateTime.now()));


        /*

 接收方2看到应用程序在2023-01-06T17:42:12.456启动
 接收方1看到应用程序在2023-01-06T17:42:12.456启动
 foo sess message 消息:{Only foo should see this}
 boo sess message 消息:{Foo and boo should see this}
 foo sess message 消息:{Foo and boo should see this}
 boo sess message 消息:{Only boo should see this}
 接收方2看到应用程序在2023-01-06T17:42:12.466停止
 接收方2正在发送停止消息
 boo sess message 消息:{Goodbye cruel world from #2!}
 接收方1看到应用程序在2023-01-06T17:42:12.466停止
 接收方1正在发送停止消息
 boo sess message 消息:{Goodbye cruel world from #1!}

         */

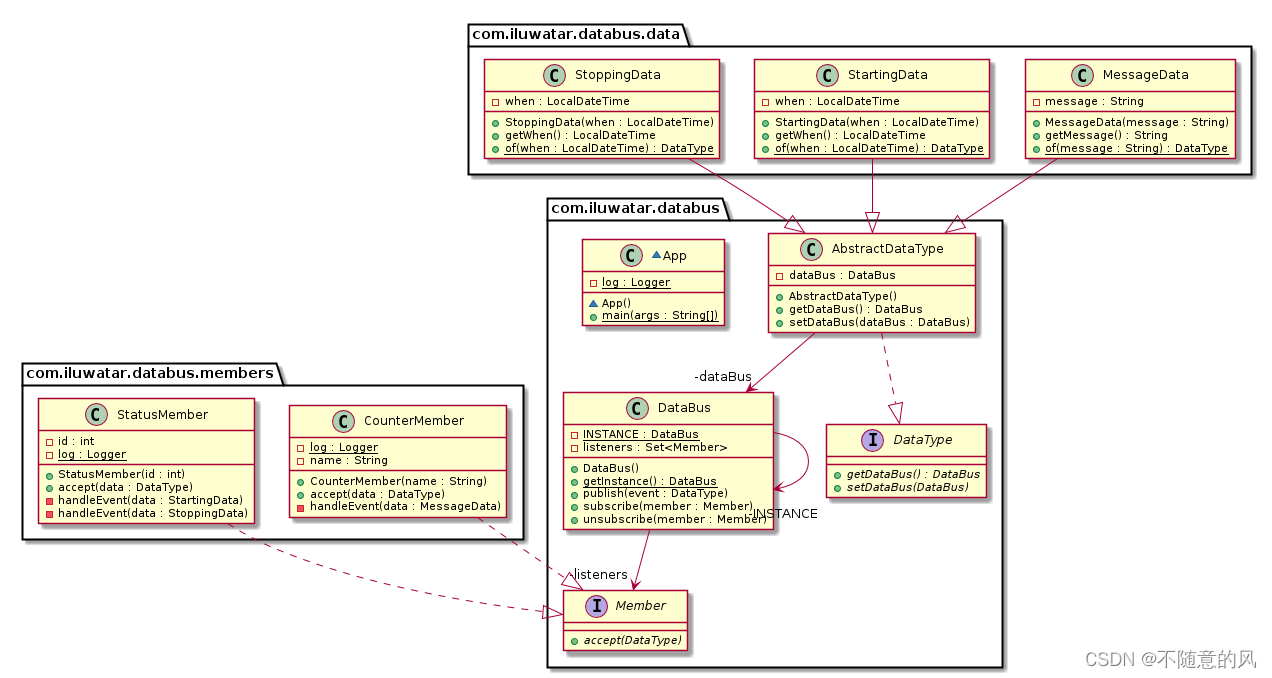

类图：
