代码下载链接

https://download.csdn.net/download/qq_39750057/15011414

建立一个工程项目

C# 的控制台应用就够了

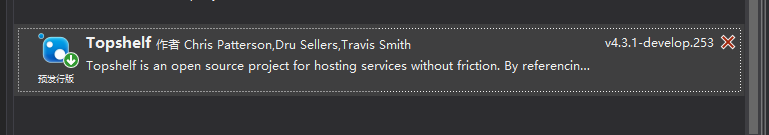

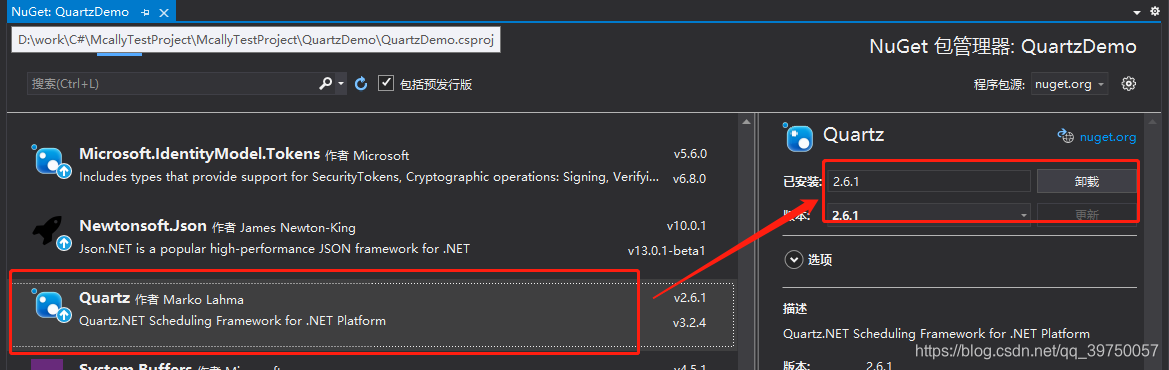

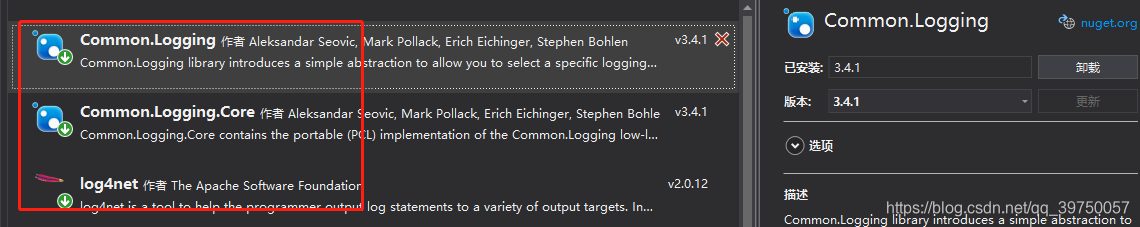

导入Quartz，log4net,Common.logging，topshelf

配置文件

创建log4net.config文件

<?xml version="1.0" encoding="utf-8" ?>
<configuration>
	<configSections>
		<section name="log4net" type="log4net.Config.Log4NetConfigurationSectionHandler, log4net"/>
	</configSections>
	<log4net>
		<appender name="RollingLogFileAppender" type="log4net.Appender.RollingFileAppender">
			<!--日志路径-->
			<param name= "File" value= "D:\App_Log\servicelog\"/>
			<!--是否是向文件中追加日志-->
			<param name= "AppendToFile" value= "true"/>
			<!--log保留天数-->
			<param name= "MaxSizeRollBackups" value= "10"/>
			<!--日志文件名是否是固定不变的-->
			<param name= "StaticLogFileName" value= "false"/>
			<!--日志文件名格式为:2008-08-31.log-->
			<param name= "DatePattern" value= "yyyy-MM-dd&quot;.read.log&quot;"/>
			<!--日志根据日期滚动-->
			<param name= "RollingStyle" value= "Date"/>
			<layout type="log4net.Layout.PatternLayout">
				<param name="ConversionPattern" value="%d [%t] %-5p %c - %m%n %loggername" />
			</layout>
		</appender>
		<!-- 控制台前台显示日志 -->
		<appender name="ColoredConsoleAppender" type="log4net.Appender.ColoredConsoleAppender">
			<mapping>
				<level value="ERROR" />
				<foreColor value="Red, HighIntensity" />
			</mapping>
			<mapping>
				<level value="Info" />
				<foreColor value="Green" />
			</mapping>
			<layout type="log4net.Layout.PatternLayout">
				<conversionPattern value="%n%date{HH:mm:ss,fff} [%-5level] %m" />
			</layout>
			<filter type="log4net.Filter.LevelRangeFilter">
				<param name="LevelMin" value="Info" />
				<param name="LevelMax" value="Fatal" />
			</filter>
		</appender>
		<root>
			<!--(高) OFF > FATAL > ERROR > WARN > INFO > DEBUG > ALL (低) -->
			<level value="all" />
			<appender-ref ref="ColoredConsoleAppender"/>
			<appender-ref ref="RollingLogFileAppender"/>
		</root>
	</log4net>
</configuration>

创建quartz.config文件

# You can configure your scheduler in either quartz configuration section
# or in quartz properties file
# Configuration section has precedence

quartz.scheduler.instanceName = ServerScheduler

# configure thread pool info
quartz.threadPool.type = Quartz.Simpl.SimpleThreadPool, Quartz
quartz.threadPool.threadCount = 10
quartz.threadPool.threadPriority = Normal

# job initialization plugin handles our xml reading, without it defaults are used
quartz.plugin.xml.type = Quartz.Plugin.Xml.XMLSchedulingDataProcessorPlugin,Quartz
quartz.plugin.xml.fileNames = ~/quartz_jobs.xml

# export this server to remoting context
quartz.scheduler.exporter.type = Quartz.Simpl.RemotingSchedulerExporter,Quartz
quartz.scheduler.exporter.port = 50186
quartz.scheduler.exporter.bindName = QuartzScheduler
quartz.scheduler.exporter.channelType = tcp
quartz.scheduler.exporter.channelName = httpQuartz

创建quartz_jobs.xml文件

<?xml version="1.0" encoding="utf-8" ?>
<job-scheduling-data xmlns="http://quartznet.sourceforge.net/JobSchedulingData" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" version="2.0">

	<processing-directives>
		<overwrite-existing-data>true</overwrite-existing-data>
	</processing-directives>

	<schedule>

		<!--开始执行一个调度-->
		<job>
			<name>FileJob</name>
			<group>FileJobGroup</group>
			<description>测试quartz</description>
			<job-type>QuartzDemo.job.FileJob,QuartzDemo</job-type>
			<durable>true</durable>
			<recover>false</recover>
		</job>

		<trigger>
			<cron>
				<name>TestJobTrigger</name>
				<group>TestJobTriggerGroup</group>
				<job-name>FileJob</job-name>
				<job-group>FileJobGroup</job-group>
				<start-time>2021-02-03T14:00:00+08:00</start-time>
				<cron-expression>*/5 * * * * ?</cron-expression>
			</cron>
		</trigger>
		<!--结束一个调度-->

	</schedule>
</job-scheduling-data>

实现逻辑部分的类

实现一个任务工作

        /// <summary>
        /// @author   Mcally
        /// @date     2021年2月3日16:55:19
        /// @des      实现一个任务工作
        /// </summary>
 class FileJob : IJob
    {

        /// <param name="context"></param>
        public void Execute(IJobExecutionContext context)
        {
                //实现逻辑部分
                Console.WriteLine("触发一次...");
                using (StreamWriter sw = new StreamWriter(Path.Combine(AppDomain.CurrentDomain.BaseDirectory,"log.txt"),true,Encoding.UTF8)) {
                    sw.WriteLine("I love  you  Mcally......");
                }

        }
    }

实现一个服务

    /// <summary>
    /// @author  Mcally
    /// @date    2021年2月3日16:58:21
    /// @des     实现一个服务
    /// </summary>
    public sealed class ServiceRunner : ServiceControl, ServiceSuspend
    {
        private readonly IScheduler scheduler;

        public ServiceRunner()
        {
            scheduler = StdSchedulerFactory.GetDefaultScheduler();
        }

        public bool Start(HostControl hostControl)
        {
            scheduler.Start();
            return true;
        }

        public bool Stop(HostControl hostControl)
        {
            scheduler.Shutdown(false);
            return true;
        }

        public bool Continue(HostControl hostControl)
        {
            scheduler.ResumeAll();
            return true;
        }

        public bool Pause(HostControl hostControl)
        {
            scheduler.PauseAll();
            return true;
        }


    }

运行

 class Program
    {
        static void Main(string[] args)
        {

            log4net.Config.XmlConfigurator.ConfigureAndWatch(new FileInfo(AppDomain.CurrentDomain.BaseDirectory + "/log4net.config"));
            HostFactory.Run(x =>
            {

                x.Service<ServiceRunner>();

                x.SetDescription("FileService服务描述");
                x.SetDisplayName("FileService服务显示名称");
                x.SetServiceName("FileService服务名称");

                x.EnablePauseAndContinue();
            });


            Console.ReadKey();

        }

    }

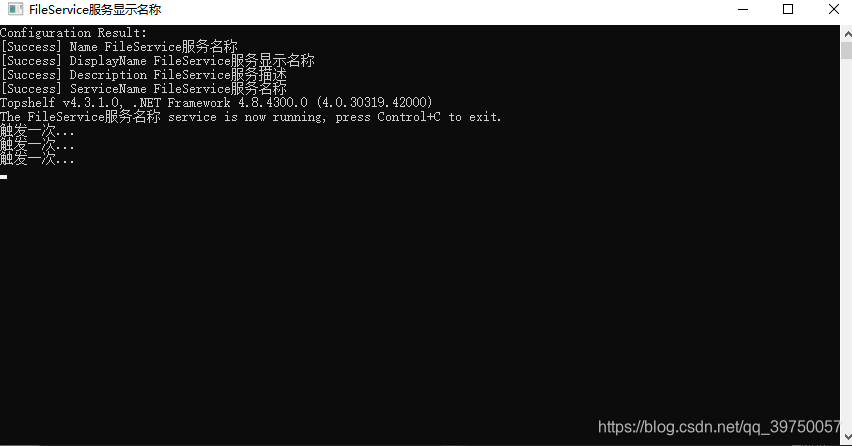

效果图。。

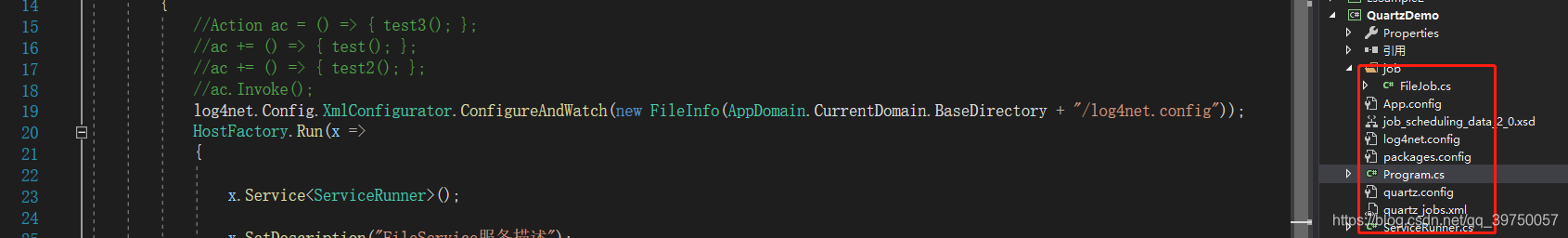

整体项目结构
