nacos 系列学习（二、Nacos服务注册与发现）

这个月太忙没时间看C++

432人浏览 · 2020-09-15 14:06:00

这个月太忙没时间看C++ · 2020-09-15 14:06:00 发布

一，首先需要启动nacos服务nacos->bin->startup.cmd,直接双击运行

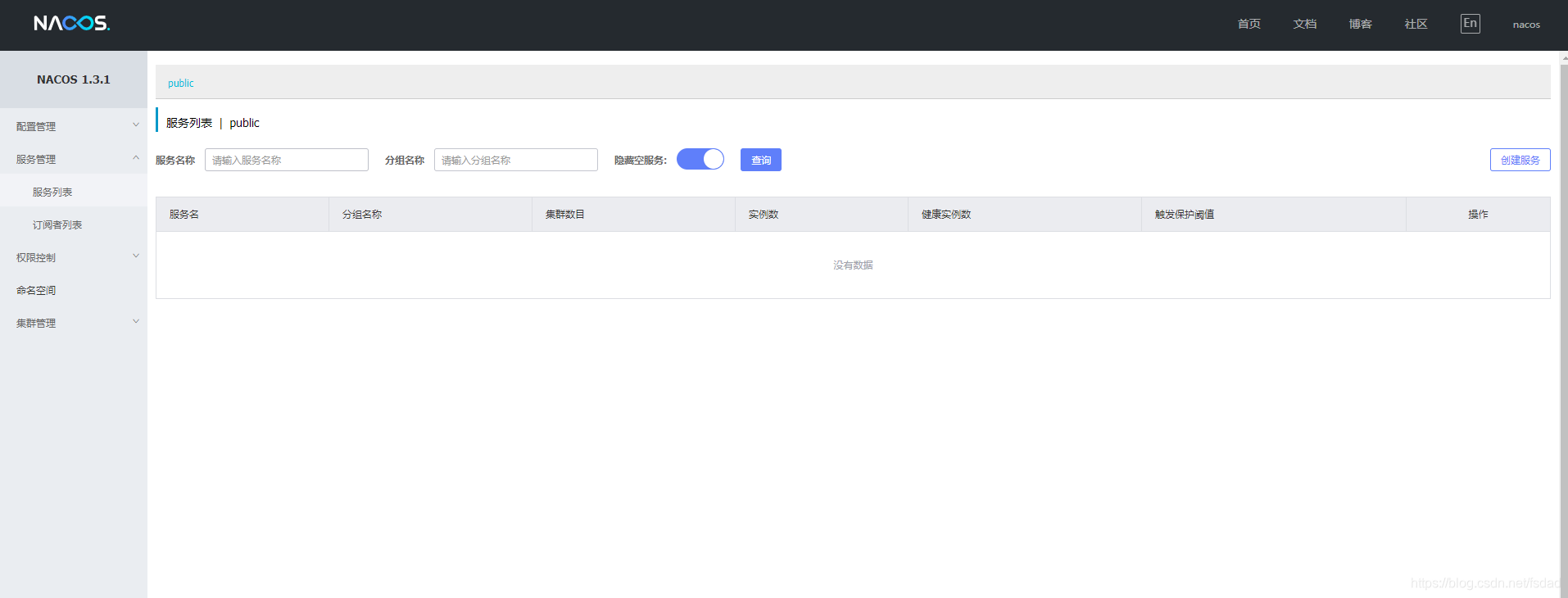

浏览器访问localhost:8848可以看到以下界面

二，创建Maven父工程。后引入架包

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>nacosprovider</groupId>
    <artifactId>minenacos</artifactId>
    <version>1.0-SNAPSHOT</version>

    <modules>
        <module>nacosprovider</module>
        <module>consumer</module>
    </modules>

    <properties>
        <spring-cloud-starter-alibaba-nacos-discovery.version>2.2.0.RELEASE</spring-cloud-starter-alibaba-nacos-discovery.version>
    </properties>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-web</artifactId>
                <version>2.2.4.RELEASE</version>
            </dependency>
        </dependencies>
    </dependencyManagement>
    <dependencies>
        <!-- https://mvnrepository.com/artifact/com.alibaba.cloud/spring-cloud-starter-alibaba-nacos-discovery -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
            <scope>provided</scope>
            <version>${spring-cloud-starter-alibaba-nacos-discovery.version}</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/com.alibaba.nacos/nacos-client -->
        <dependency>
            <groupId>com.alibaba.nacos</groupId>
            <artifactId>nacos-client</artifactId>
            <version>1.2.0-beta.1</version>
        </dependency>


        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <version>2.2.4.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpclient</artifactId>
            <version>4.5.11</version>
        </dependency>
    </dependencies>

</project>

其中spring-boot-starter-web版本为2.2.4版本，引入2.3.3会报架包错，这个最后再讲

三、创建子模块module，

pom.xml文件为

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>nacosprovider</groupId>
        <artifactId>minenacos</artifactId>
        <version>1.0-SNAPSHOT</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.apiprovider</groupId>
    <artifactId>nacosprovider</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>nacosprovider</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <!--<dependency>-->
            <!--<groupId>org.springframework.boot</groupId>-->
            <!--<artifactId>spring-boot-starter-web</artifactId>-->
            <!--<version>2.2.4.RELEASE</version>-->
        <!--</dependency>-->

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <version>2.3.1.RELEASE</version>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

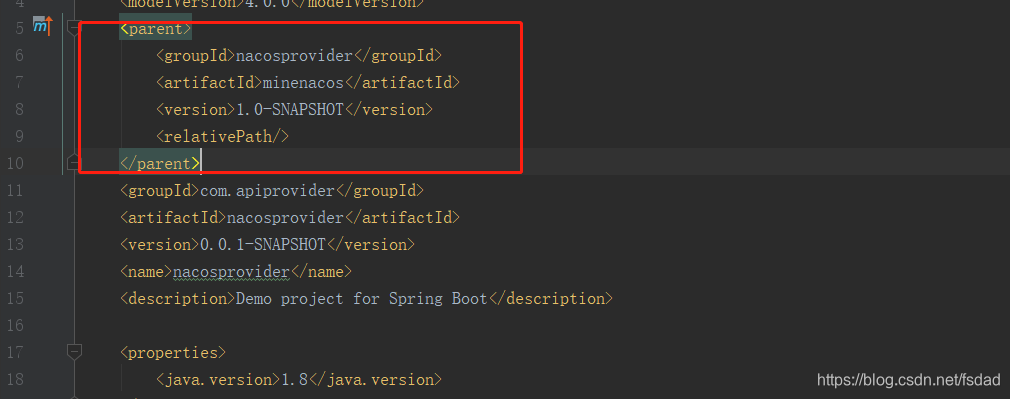

注意：修改父级maven指向

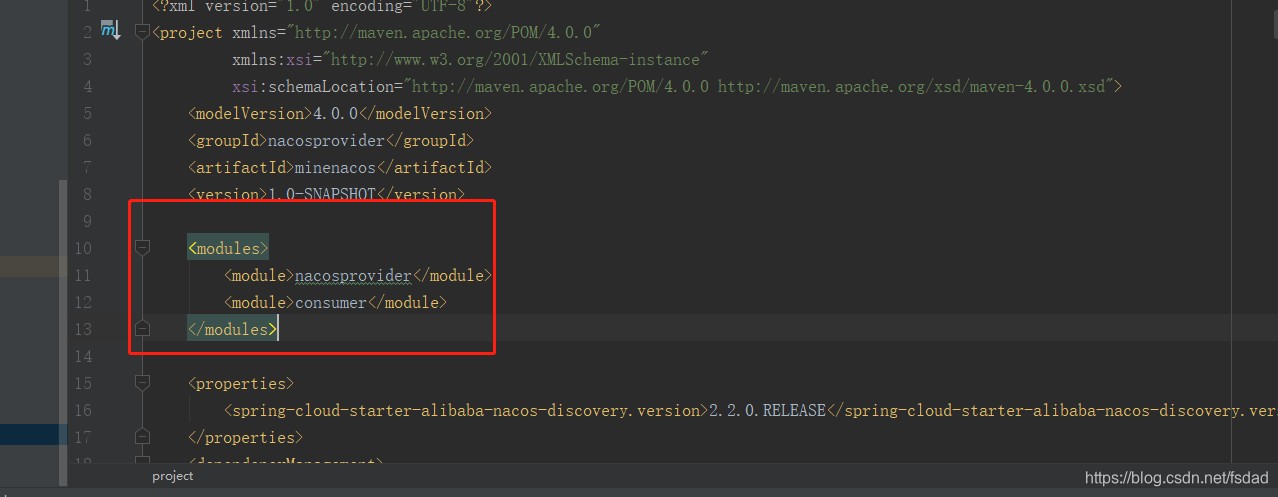

在父级pom.xml中加入modules节点

四、服务提供者的修改启动类

package com.apiprovider.nacosprovider;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

@SpringBootApplication
@EnableDiscoveryClient

public class NacosproviderApplication {

    public static void main(String[] args) {
        SpringApplication.run(NacosproviderApplication.class, args);
    }

    @RestController
    class EchoController {
        @RequestMapping(value = "/echo/{string}", method = RequestMethod.GET)
        public String echo(@PathVariable String string) {
            return "Hello Nacos Discovery " + string;
        }
    }
}

五、添加application.yml

spring:
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
  application:
    name: service-provider
server:
  port: 4444

其中 127.0.0.1:8848为nacos服务地址

六、添加服务消费者

同上一样创建module子项目，其中pom.xml如下

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>nacosprovider</groupId>
        <artifactId>minenacos</artifactId>
        <version>1.0-SNAPSHOT</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.nacosconsumer</groupId>
    <artifactId>consumer</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>consumer</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <!--<dependency>-->
            <!--<groupId>org.springframework.boot</groupId>-->
            <!--<artifactId>spring-boot-starter-web</artifactId>-->
        <!--</dependency>-->

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <version>2.3.1.RELEASE</version>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

同样需要指定父级节点

创建application.yml

spring:
  application:
    name:  service-consumer
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
server:
  port: 5555

最后修改启动类

package com.nacosconsumer.consumer;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.client.loadbalancer.LoadBalanced;
import org.springframework.context.annotation.Bean;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

@SpringBootApplication
@EnableDiscoveryClient
public class ConsumerApplication {

    public static void main(String[] args) {
        SpringApplication.run(ConsumerApplication.class, args);
    }

    @LoadBalanced
    @Bean
    public RestTemplate restTemplate() {
        return new RestTemplate();
    }

    @RestController
    public class TestController {

        private final RestTemplate restTemplate;

        @Autowired
        public TestController(RestTemplate restTemplate) {this.restTemplate = restTemplate;}

        @RequestMapping(value = "/echo/{str}", method = RequestMethod.GET)
        public String echo(@PathVariable String str) {

            return restTemplate.getForObject("http://service-provider/echo/" + str, String.class);
        }
    }
}

红框中的地址即为注册到nacos中的服务地址

七、分别启动两个子项目后

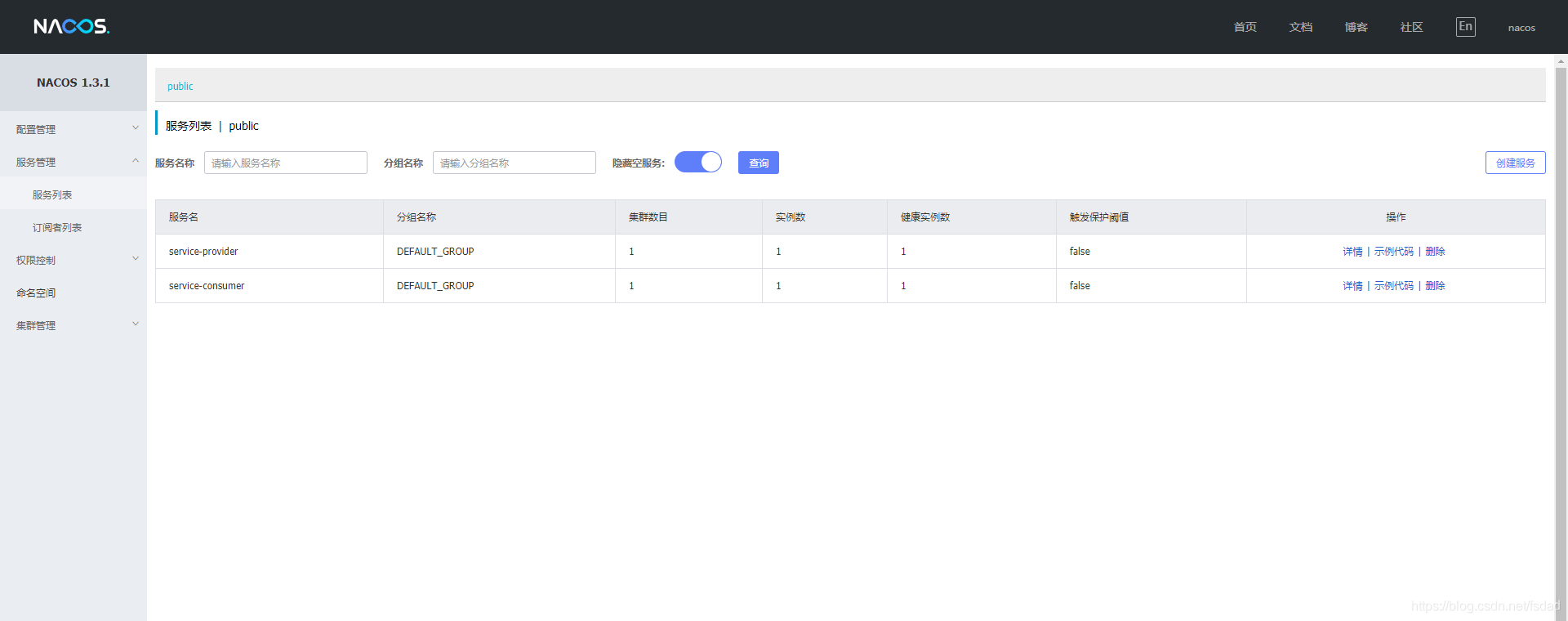

刷新nacos可见服务

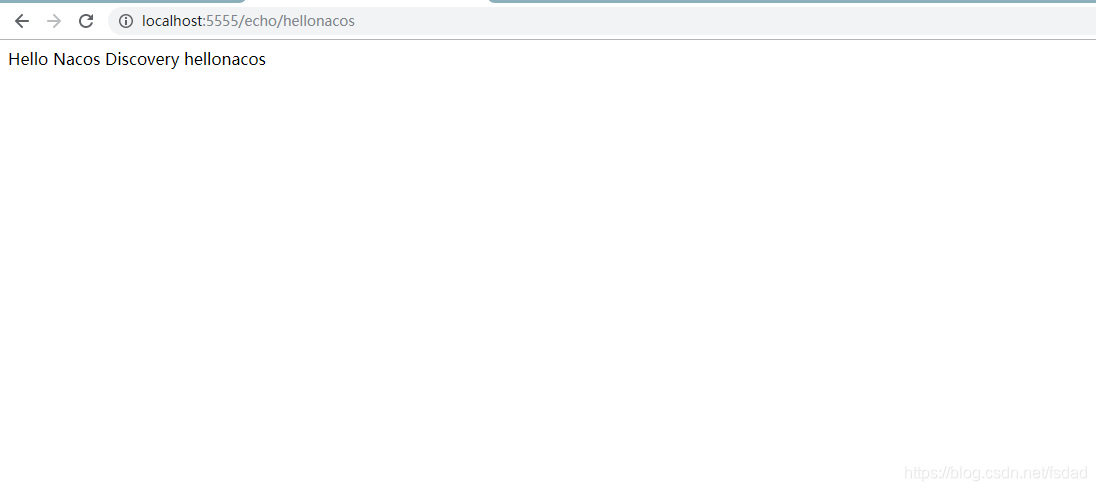

然后访问接口：http://localhost:5555/echo/hellonacos

完成！

上面说如果引用的

spring-boot-starter-web版本为2.3.3 会报错

Caused by: java.lang.NoClassDefFoundError: com/fasterxml/jackson/datatype/jsr310/ser/ZoneIdSerializer

因为架包之间关系需要导入

<dependency>
<groupId>com.fasterxml.jackson.datatype</groupId>
<artifactId>jackson-datatype-jsr310</artifactId>
<version>2.11.2</version>
</dependency>

即可
