LayUi集成下载Excel、word、PDF、CSV扩展
·
根据项目需求，主要用的layui这个前段框架，现在需要支持将页面下载为四种格式的文件。
Excel、CSV

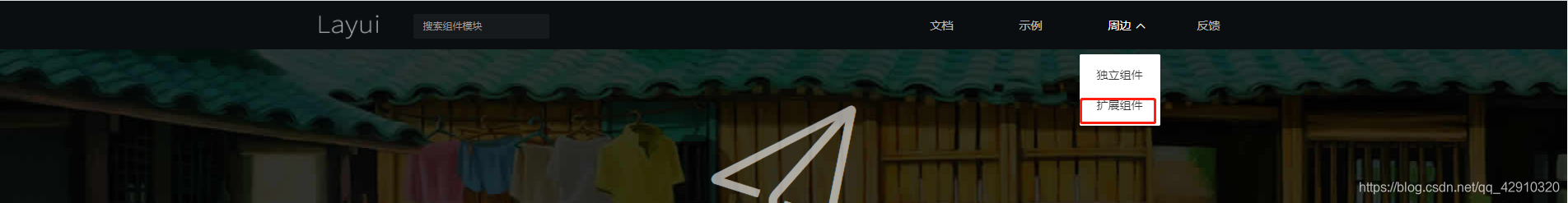

第一步：去layUi官网中找到对应的扩展文档；
下载对应的扩展文件，导入项目中。
根据文档的写法。初始化Excel控件
layui.config({
base: 'layui_exts/', // 配置一个可访问地址
}).extend({
excel: 'excel',
});
layui.use(['excel'], function (){
//导出格式在这里改变类型就行了
//layui.excel.exportExcel([[1, 2, 3]], '表格导出.xlsx', 'xlsx')
layui.excel.exportExcel([[1, 2, 3]], '表格导出.csv', 'csv')
})
文档官方地址：
http://excel.wj2015.com/_book/
页面：

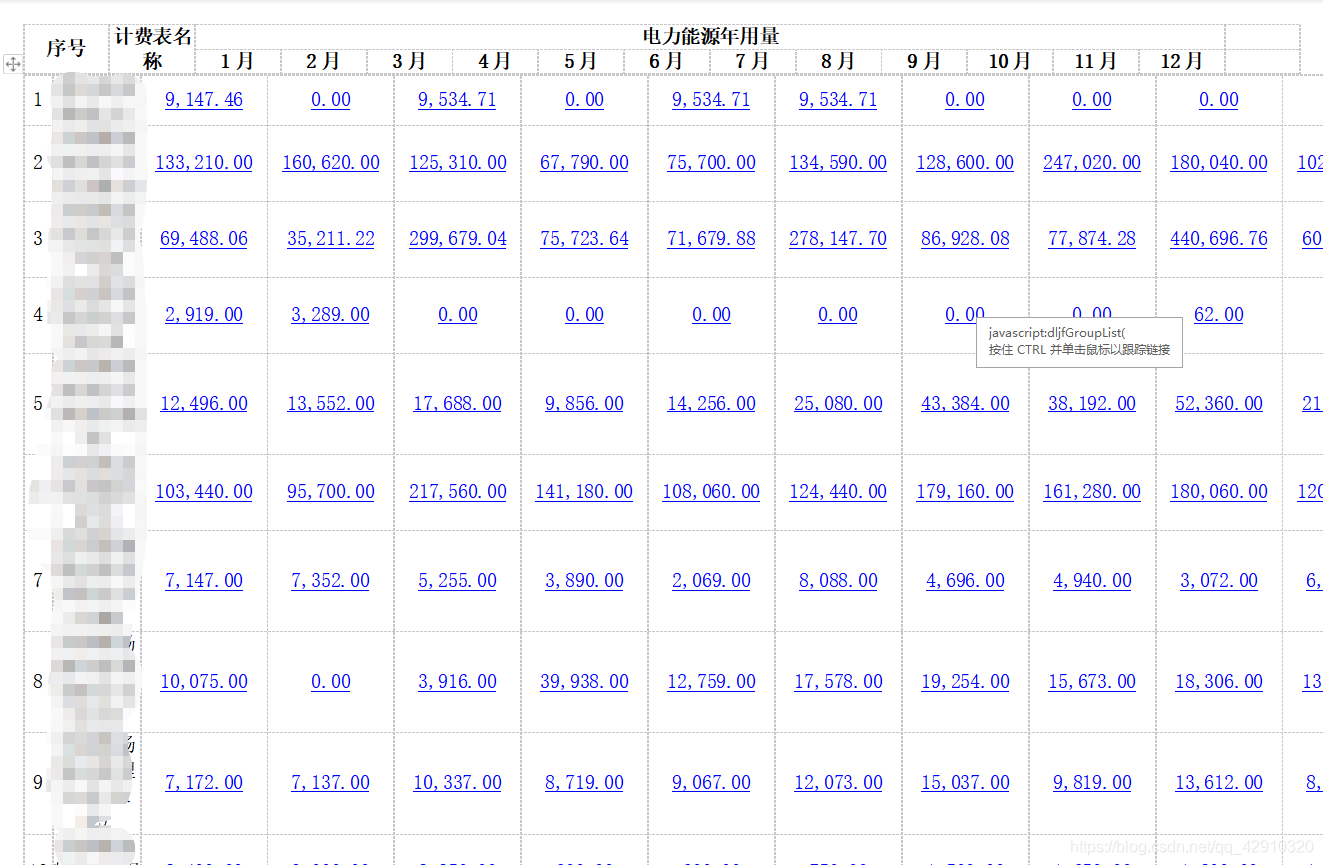

下载的Excel效果：
下载的CSV效果：
Word
第一步：导入js文件
<script type="text/javascript" src="../layui/layui.js"></script>
<script type="text/javascript" src="../extend/FileSaver.js"></script>
<script type="text/javascript" src="../extend/wordexport.js"></script>
FileSaver.js代码：
/*
* FileSaver.js
* A saveAs() FileSaver implementation.
*
* By Eli Grey, http://eligrey.com
*
* License : https://github.com/eligrey/FileSaver.js/blob/master/LICENSE.md (MIT)
* source : http://purl.eligrey.com/github/FileSaver.js
*/
// The one and only way of getting global scope in all environments
// https://stackoverflow.com/q/3277182/1008999
layui.define(["jquery"], function (exports) {
var jQuery = layui.jquery;
var obj = (function($) {
var _global = typeof window === 'object' && window.window === window
? window : typeof self === 'object' && self.self === self
? self : typeof global === 'object' && global.global === global
? global
: this
function bom (blob, opts) {
if (typeof opts === 'undefined') opts = { autoBom: false }
else if (typeof opts !== 'object') {
console.warn('Deprecated: Expected third argument to be a object')
opts = { autoBom: !opts }
}
// prepend BOM for UTF-8 XML and text/* types (including HTML)
// note: your browser will automatically convert UTF-16 U+FEFF to EF BB BF
if (opts.autoBom && /^\s*(?:text\/\S*|application\/xml|\S*\/\S*\+xml)\s*;.*charset\s*=\s*utf-8/i.test(blob.type)) {
return new Blob([String.fromCharCode(0xFEFF), blob], { type: blob.type })
}
return blob
}
function download (url, name, opts) {
var xhr = new XMLHttpRequest()
xhr.open('GET', url)
xhr.responseType = 'blob'
xhr.onload = function () {
saveAs(xhr.response, name, opts)
}
xhr.onerror = function () {
console.error('could not download file')
}
xhr.send()
}
function corsEnabled (url) {
var xhr = new XMLHttpRequest()
// use sync to avoid popup blocker
xhr.open('HEAD', url, false)
try {
xhr.send()
} catch (e) {}
return xhr.status >= 200 && xhr.status <= 299
}
// `a.click()` doesn't work for all browsers (#465)
function click (node) {
try {
node.dispatchEvent(new MouseEvent('click'))
} catch (e) {
var evt = document.createEvent('MouseEvents')
evt.initMouseEvent('click', true, true, window, 0, 0, 0, 80,
20, false, false, false, false, 0, null)
node.dispatchEvent(evt)
}
}
// Detect WebView inside a native macOS app by ruling out all browsers
// We just need to check for 'Safari' because all other browsers (besides Firefox) include that too
// https://www.whatismybrowser.com/guides/the-latest-user-agent/macos
var isMacOSWebView = /Macintosh/.test(navigator.userAgent) && /AppleWebKit/.test(navigator.userAgent) && !/Safari/.test(navigator.userAgent)
var saveAs = _global.saveAs || (
// probably in some web worker
(typeof window !== 'object' || window !== _global)
? function saveAs () { /* noop */ }
// Use download attribute first if possible (#193 Lumia mobile) unless this is a macOS WebView
: ('download' in HTMLAnchorElement.prototype && !isMacOSWebView)
? function saveAs (blob, name, opts) {
var URL = _global.URL || _global.webkitURL
var a = document.createElement('a')
name = name || blob.name || 'download'
a.download = name
a.rel = 'noopener' // tabnabbing
// TODO: detect chrome extensions & packaged apps
// a.target = '_blank'
if (typeof blob === 'string') {
// Support regular links
a.href = blob
if (a.origin !== location.origin) {
corsEnabled(a.href)
? download(blob, name, opts)
: click(a, a.target = '_blank')
} else {
click(a)
}
} else {
// Support blobs
a.href = URL.createObjectURL(blob)
setTimeout(function () { URL.revokeObjectURL(a.href) }, 4E4) // 40s
setTimeout(function () { click(a) }, 0)
}
}
// Use msSaveOrOpenBlob as a second approach
: 'msSaveOrOpenBlob' in navigator
? function saveAs (blob, name, opts) {
name = name || blob.name || 'download'
if (typeof blob === 'string') {
if (corsEnabled(blob)) {
download(blob, name, opts)
} else {
var a = document.createElement('a')
a.href = blob
a.target = '_blank'
setTimeout(function () { click(a) })
}
} else {
navigator.msSaveOrOpenBlob(bom(blob, opts), name)
}
}
// Fallback to using FileReader and a popup
: function saveAs (blob, name, opts, popup) {
// Open a popup immediately do go around popup blocker
// Mostly only available on user interaction and the fileReader is async so...
popup = popup || open('', '_blank')
if (popup) {
popup.document.title =
popup.document.body.innerText = 'downloading...'
}
if (typeof blob === 'string') return download(blob, name, opts)
var force = blob.type === 'application/octet-stream'
var isSafari = /constructor/i.test(_global.HTMLElement) || _global.safari
var isChromeIOS = /CriOS\/[\d]+/.test(navigator.userAgent)
if ((isChromeIOS || (force && isSafari) || isMacOSWebView) && typeof FileReader !== 'undefined') {
// Safari doesn't allow downloading of blob URLs
var reader = new FileReader()
reader.onloadend = function () {
var url = reader.result
url = isChromeIOS ? url : url.replace(/^data:[^;]*;/, 'data:attachment/file;')
if (popup) popup.location.href = url
else location = url
popup = null // reverse-tabnabbing #460
}
reader.readAsDataURL(blob)
} else {
var URL = _global.URL || _global.webkitURL
var url = URL.createObjectURL(blob)
if (popup) popup.location = url
else location.href = url
popup = null // reverse-tabnabbing #460
setTimeout(function () { URL.revokeObjectURL(url) }, 4E4) // 40s
}
}
)
_global.saveAs = saveAs.saveAs = saveAs
if (typeof module !== 'undefined') {
module.exports = saveAs;
}
})(jQuery);
exports("FileSaver", obj);
});
wordexport.js代码：
layui.define(["jquery"], function (exports) {
var jQuery = layui.jquery;
if (typeof jQuery !== "undefined" && typeof saveAs !== "undefined") {
var obj = (function($) {
$.fn.wordExport = function(fileName,style) {
fileName = typeof fileName !== 'undefined' ? fileName : "jQuery-Word-Export";
var static = {
mhtml: {
top: "Mime-Version: 1.0\nContent-Base: " + location.href + "\nContent-Type: Multipart/related; boundary=\"NEXT.ITEM-BOUNDARY\";type=\"text/html\"\n\n--NEXT.ITEM-BOUNDARY\nContent-Type: text/html; charset=\"utf-8\"\nContent-Location: " + location.href + "\n\n<!DOCTYPE html>\n<html>\n_html_</html>",
head: "<head>\n<meta http-equiv=\"Content-Type\" content=\"text/html; charset=utf-8\">\n<style>\n_styles_\n</style>\n</head>\n",
body: "<body>_body_</body>"
}
};
var options = {
maxWidth: 624
};
// Clone selected element before manipulating it
//clone()，复制
var markup = $(this).clone();
// Remove hidden elements from the output
markup.each(function() {
var self = $(this);
//我这里是将HTML中的冻结窗口元素排除掉
self.find("div.layui-table-fixed").remove();
self.find("div.layui-table-body table div").remove();
//设置内联样式
self.find("th").css("width",'140px');
self.find("td").css("width",'140px');
if (self.is(':hidden'))
self.remove();
});
// Embed all images using Data URLs
var images = Array();
var img = markup.find('img');
for (var i = 0; i < img.length; i++) {
// Calculate dimensions of output image
var w = Math.min(img[i].width, options.maxWidth);
var h = img[i].height * (w / img[i].width);
// Create canvas for converting image to data URL
var canvas = document.createElement("CANVAS");
canvas.width = w;
canvas.height = h;
// Draw image to canvas
var context = canvas.getContext('2d');
context.drawImage(img[i], 0, 0, w, h);
// Get data URL encoding of image
var uri = canvas.toDataURL("image/png");
$(img[i]).attr("src", img[i].src);
img[i].width = w;
img[i].height = h;
// Save encoded image to array
images[i] = {
type: uri.substring(uri.indexOf(":") + 1, uri.indexOf(";")),
encoding: uri.substring(uri.indexOf(";") + 1, uri.indexOf(",")),
location: $(img[i]).attr("src"),
data: uri.substring(uri.indexOf(",") + 1)
};
}
// Prepare bottom of mhtml file with image data
var mhtmlBottom = "\n";
for (var i = 0; i < images.length; i++) {
mhtmlBottom += "--NEXT.ITEM-BOUNDARY\n";
mhtmlBottom += "Content-Location: " + images[i].location + "\n";
mhtmlBottom += "Content-Type: " + images[i].type + "\n";
mhtmlBottom += "Content-Transfer-Encoding: " + images[i].encoding + "\n\n";
mhtmlBottom += images[i].data + "\n\n";
}
mhtmlBottom += "--NEXT.ITEM-BOUNDARY--";
//TODO: load css from included stylesheet
// var styles = style;
// var styles = '';
var styles = style;
// Aggregate parts of the file together
var fileContent = static.mhtml.top.replace("_html_", static.mhtml.head.replace("_styles_", styles) + static.mhtml.body.replace("_body_", markup.html())) + mhtmlBottom;
console.info("fileContent",fileContent);
// Create a Blob with the file contents
var blob = new Blob([fileContent], {
type: "application/msword;charset=utf-8"
});
saveAs(blob, fileName + ".doc");
};
})(jQuery);
} else {
if (typeof jQuery === "undefined") {
console.error("jQuery Word Export: missing dependency (jQuery)");
}
if (typeof saveAs === "undefined") {
console.error("jQuery Word Export: missing dependency (FileSaver.js)");
}
}
exports("wordexport", obj);
});

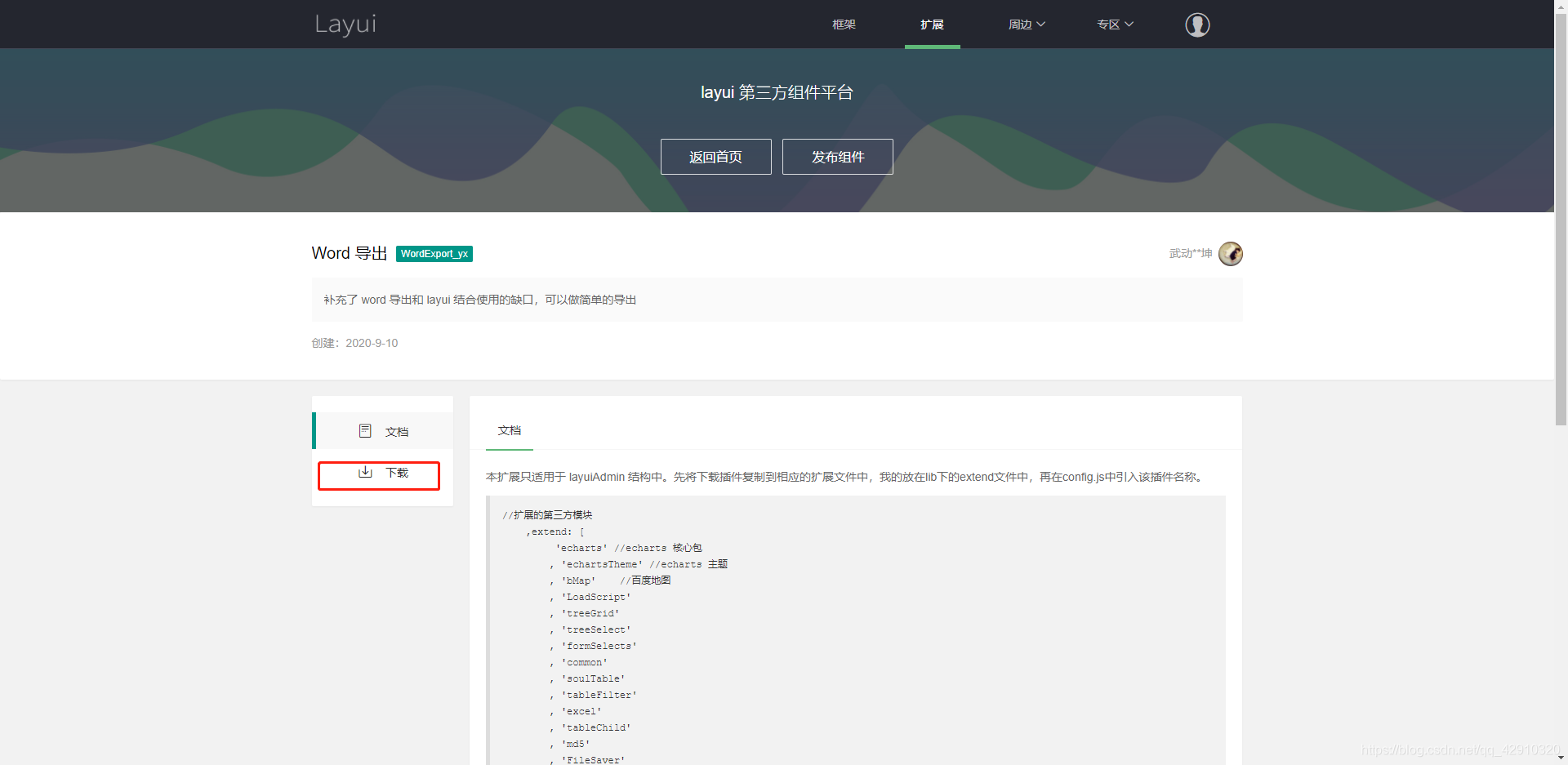

其中的FileSaver.js和wordexport.js是在layui官网的扩展中找到对应的扩展文档，下载的。
当js文件引入后，自选集需要写的代码就是下面这几句了，很简单：
let style = "";
//这里的style是自定义导出的Word文档里面的样式，我这里导出的是表格，所以在修改表格单元格宽度
style+=".layui-table-body table tr td{width:140px;}";
$("div[lay-id='myTable']").wordExport(“导出Word文档名称”,style);
这里我发现，导出的文档存在问题：
表头和数据部分单元格对不齐，这个问题正在想办法解决，后期解决了再更新吧。
经过我两天的碰壁，换了种方法解决了这个问题：

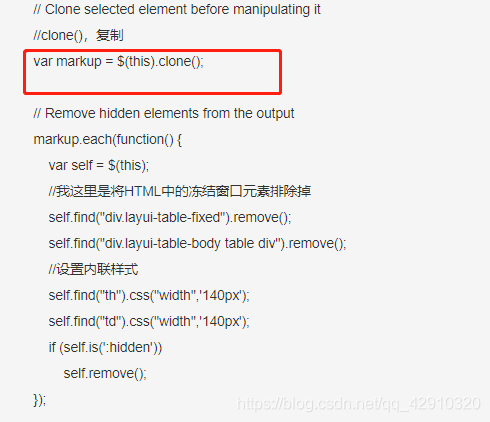

在wordexport.js文件中的下图位置，只获取页面的数据，自己重新生成一个table的html代码，情况复制的对象，重新填充HTML代码，在导出，就解决了格式对不齐的问题。这里应为无论怎么尝试调整样式都无法解决，所以退而求其次了。

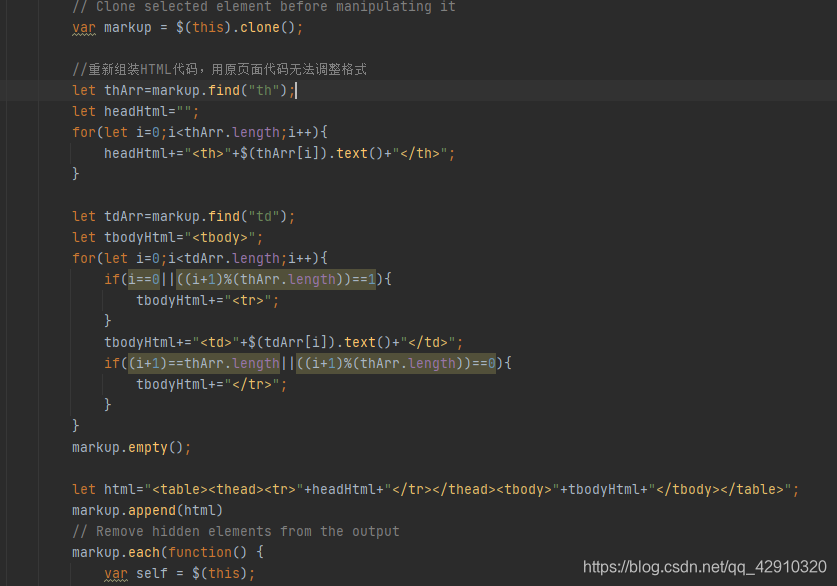

重新组装个table对象：
最后效果：
需要引入的js文件：
<script type="text/javascript" src="../html2canvas.js"></script>
<script type="text/javascript" src="../jspdf.debug.js"></script>
这两个文件在网上找找都能找到，下载就可以了。
引入js文件以后，当然就是自己写的js代码块了：
function exportPdf() {
//获取需要转换的部分的对象
//也可以直接在对象上添加id属性，$(“#id”)直接获取对象
var target = $("div .layui-table-box");
//注意：这两句代码是给对象添加内联样式的宽度和高度
//如果存在滚动条的情况，这两句就非常关键了，添加内联样式以后，下载的PDF是全部，包括滚动条隐藏的部分，如果不添加，只能下载当前可视部门
target.css('width',($("div .layui-table-body table").width()) + "px");
target.css('height',($("div .layui-table-body table").height()+$("div .layui-table-header table").height()) + "px");
html2canvas(target, {
onrendered:function(canvas) {
let contentWidth = canvas.width;
let contentHeight = canvas.height;
//一页pdf显示html页面生成的canvas高度;
let pageHeight = contentWidth / 592.28 * 841.89;
//未生成pdf的html页面高度
let leftHeight = contentHeight;
//页面偏移
let position = 0;
//a4纸的尺寸[595.28,841.89]，html页面生成的canvas在pdf中图片的宽高
let imgWidth = 595.28;
let imgHeight = 592.28/contentWidth * contentHeight;
let pageData = canvas.toDataURL('image/jpeg', 1.0);
let pdf = new jsPDF('', 'pt', 'a4');
//有两个高度需要区分，一个是html页面的实际高度，和生成pdf的页面高度(841.89)
//当内容未超过pdf一页显示的范围，无需分页
if (leftHeight < pageHeight) {
pdf.addImage(pageData, 'JPEG', 0, 0, imgWidth, imgHeight );
} else {
while(leftHeight > 0) {
pdf.addImage(pageData, 'JPEG', 0, position, imgWidth, imgHeight)
leftHeight -= pageHeight;
position -= 841.89;
//避免添加空白页
if(leftHeight > 0) {
pdf.addPage();
}
}
}
pdf.save("下载的PDF的名称.pdf");
//在下载完场后，得去掉内联样式，这样才不影响页面的滚动条效果
target.removeAttr("style");
}
})
}
之前我在解决滚动条影响的问题的时候，看见网上说的复制一个对象，添加到body中的做法，这种会影响页面布局、显示等，体验很差，可能是我未处理好的问题吧，我这种处理方法感觉也还行，就站不考虑那么多了。
下载的PDF文件，是有自动翻页功能的，当高度超过A4纸高度，会自动添加一页。
下载的效果：
